Customized li ion battery 614V 100ah 200ah 300ah lifepo4 Lithium Battery Pack for Electric Vehicle Electric Car

Name: Customized li ion battery 614V 100ah 200ah 300ah lifepo4 Lithium Battery Pack for Electric Vehicle Electric Car
Brand: CTS electric vehicle battery
Price: 3999 USD

Quality Customized li ion battery 614V 100ah 200ah 300ah lifepo4 Lithium Battery Pack for Electric Vehicle Electric Car wholesale

Brand Name : CTS electric vehicle battery

Model Number : EV lithium battery

Certification : MSDS,UN38.3

Place of Origin : China

MOQ : 1 unit

Price : $3999~7999

Payment Terms : T/T，Paypal，, L/C

Supply Ability : 5000pcs/per month

Delivery Time : 30-45days

Packaging Details : Wooden case

Product name : Electric battery

Capacity : 100ah，200ah

Voltage : 614v

Application : electric vehicle，electric bus，electric car

Warranty : 2 years

Protection : Smart Ev BMS

Cycle life : 3000 times

Battery type : lifepo4 battery，li-ion battery，lithium battery，NMC

Contact Now

Customized li ion battery 614V 100ah 200ah 300ah lifepo4 Lithium Battery Pack for Electric Vehicle Electric Car

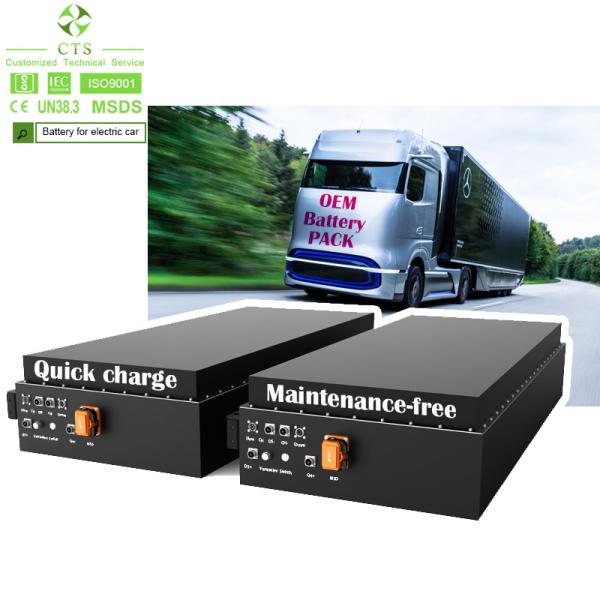

614V 100AH Lifepo4 Battery Introduction

Parameters of 614v 100Ah Lifepo4 battery pack
No.	Items	Technical requirement	Note
1	Battery Type	Lifepo4
2	Capacity(Ah)	100	@25ºC
3	Volatge	614.4v
4	Power(kWh)	61.44kWh
5	Weight(kg)	558.55
6	Working Voltage range(DC V)	480-700.8
7	Continuous discharge current(A)	80	@EOL,@25ºC
8	Peak discharge current(A)	200	For 30 seconds

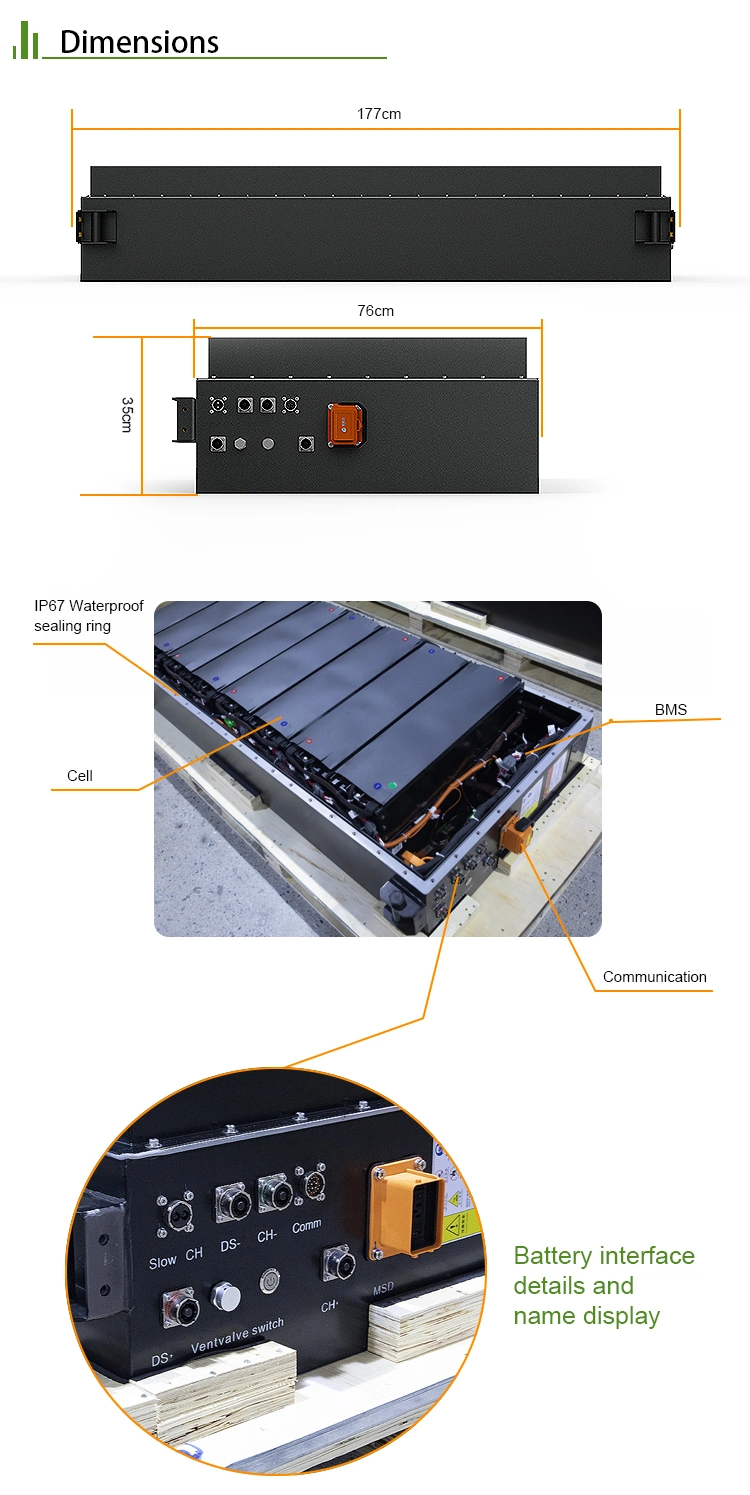

9	Dimension (L/W/H, mm)	1780720345

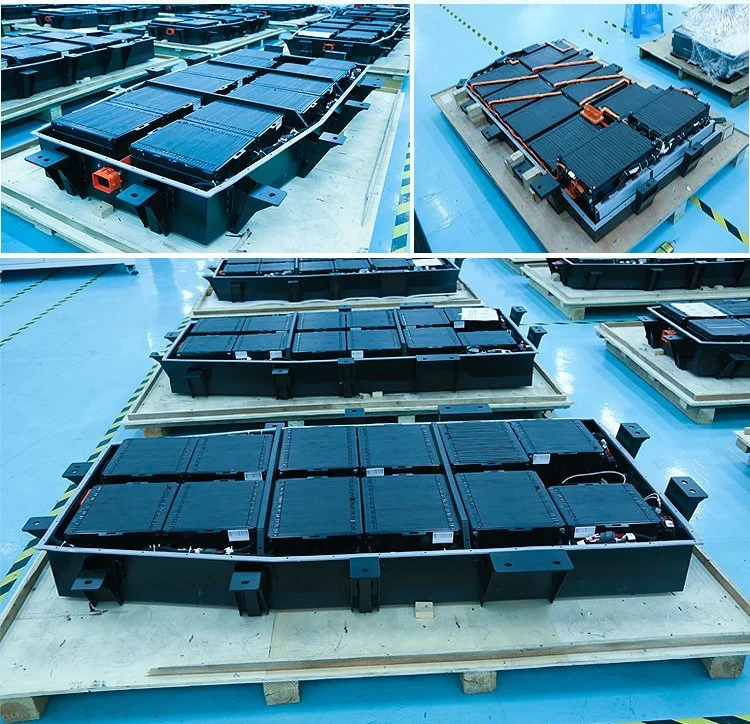

1.Lightweight and scalability

CTS systematically optimizes the cell design and electrical component selection. We select the lightest steel/aluminum
alloy and high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system
combined with CAE structural simulation analysis to ensure structural strength and improve energy density.

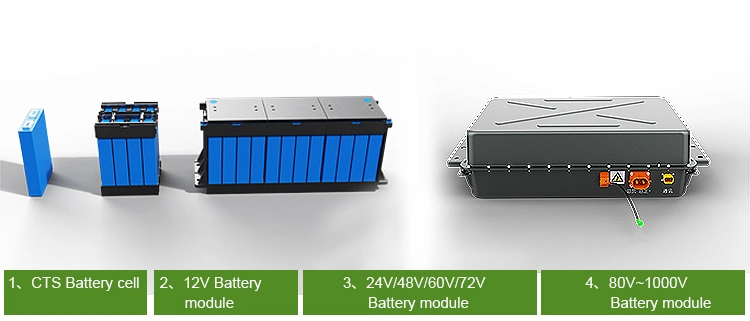

CTS uses standardized cells and BMS to build a 12V 24V 48V 72V battery modules. It can need different customer's
requirements by its excellent scalability to shorten the pack design cycle.

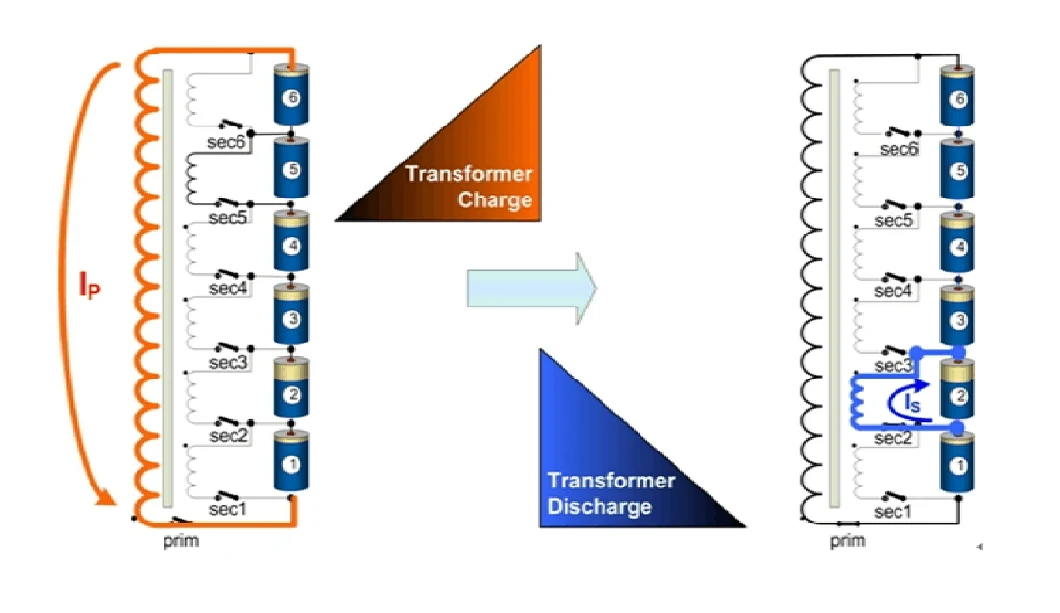

2.BMS and Active Balance

CTS has an experienced BMS development
team. Our BMS uses passive balance by default.
Active balance can be selected which can modify
BMS parameters on site according to the actual
application of customers, such as CAN/RS485
communication protocol, threshold parameters
such as over/under voltage protection,
high current protection,over/under
temperature protection.

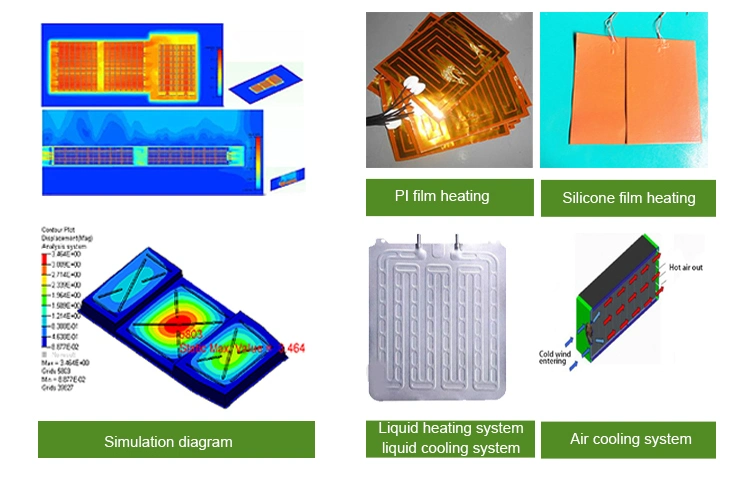

3.Thermal Management and Simulation Design

CTS has the capabilities of CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided
Engineering), and can do thermal management simulation design and structural mechanics simulation design for the
pack system. Air cooling system, liquid heat and liquid cooling system, PI film heating, silica gel film heating are used
in the thermal management design.

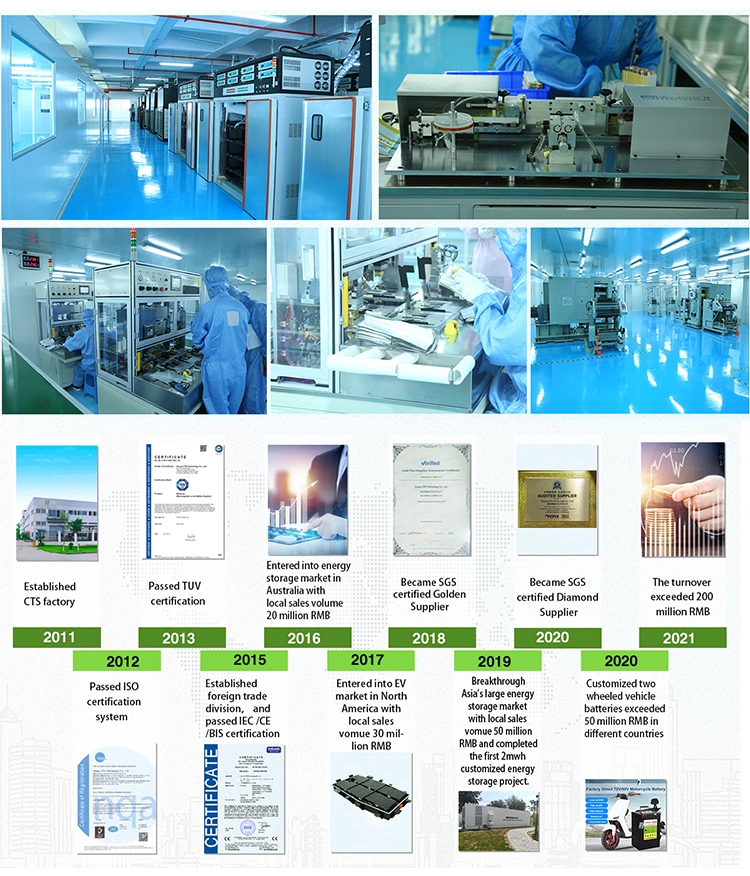

4.Test and Verification
CTS has its cooperated battery test laboratory. We will verify the battery DV / PV (design verification/production
verification) stage in the laboratory to verify whether the design / production of the battery pack meets the design
requirements. It includes temperature test, mechanical test, external environment simulation test, electrical safety
test, battery performance test, abuse test and so on.

Customized li ion battery 614V 100ah 200ah 300ah lifepo4 Lithium Battery Pack for Electric Vehicle Electric Car

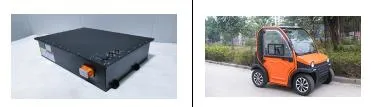

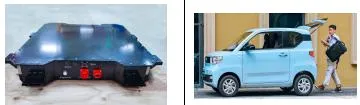

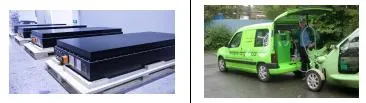

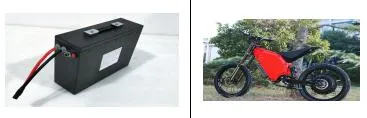

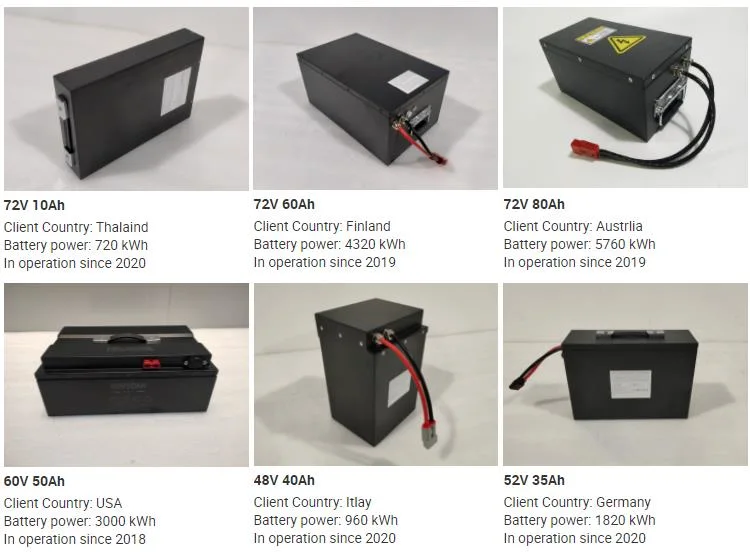

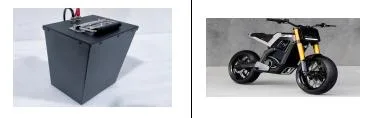

CTS lithium battery has a wider range of application and can meet 90% of electric and motorcycle
products in the market.

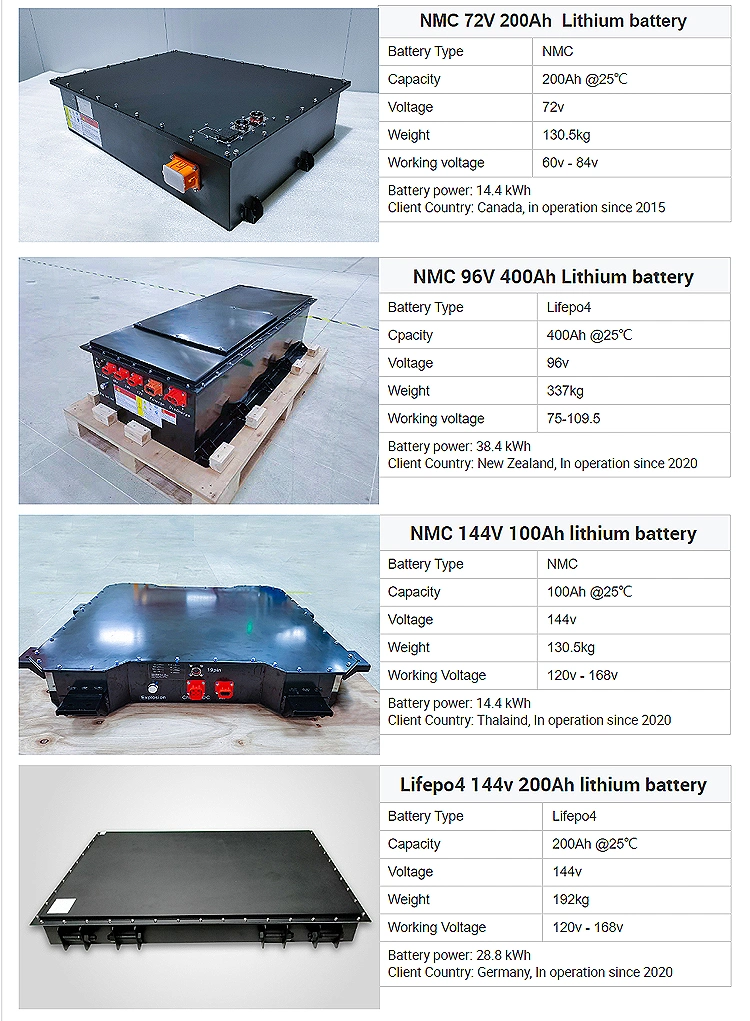

Voltage&Capacity	Items	Parameter	Project Location	Picture
72V 100Ah	Battery type	NCM	Client Country: Canada Battery power: 7.2 kWh In operation since 2015
	Capacity	100Ah
	Voltage	72V
	Weight	80 kg
144V 100AH	Battery type	NCM	Client Country: Thalaind Battery power: 14.4 kWh In operation since 2020
	Capacity	100Ah
	Voltage	144V
	Weight(kg)	130.91 Kg
614V 100AH	Battery type	Lifepo4	Client Country: UK Battery power: 61.44 kWh In operation since 2019
	Capacity	100Ah
	Voltage	614.4V
	Weight	558.55 Kg
60V 35AH	Voltage	60V	Client Country: Korea Battery power: 2100Wh In operation since 2018
	Capacity	35Ah
	Continue power	4000W
	Max power	4300W
	Charge current	30A
51.8V 35AH	Voltage	51.8V	Client Country: Germany Battery power: 1813Wh In operation since 2018
	Capacity	35Ah
	Continue power	2000W
	Max power	3000W
	Charge current	20A

Customized li ion battery 614V 100ah 200ah 300ah lifepo4 Lithium Battery Pack for Electric Vehicle Electric Car

1. Customized plywood case and foam packaging, safe for different shipment

2. 100% full testing before shipment to ensure quality

3. MSDS and UN38.3 certifications to ensure customs declaration and clearance during transportation

4. Customs on-site inspection to ensure the safety of the battery Customized li ion battery 614V 100ah 200ah 300ah lifepo4 Lithium Battery Pack for Electric Vehicle Electric Car

Adhere to the principle of service first

Customized li ion battery 614V 100ah 200ah 300ah lifepo4 Lithium Battery Pack for Electric Vehicle Electric Car
Feel free to contact us if any OEM/ODM requirement!
