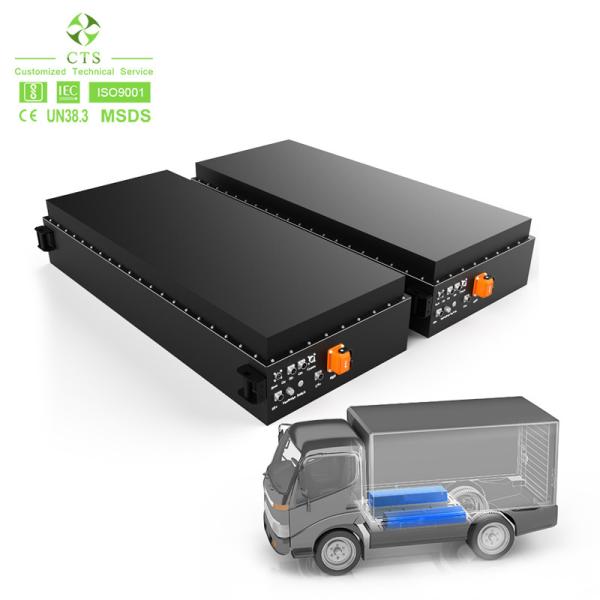

600v 400v Rechargeable Lithium Battery 30kwh 40kwh 50kwh 60kwh 100kwh lifepo4 battery For Electric Truck

Name: 600v 400v Rechargeable Lithium Battery 30kwh 40kwh 50kwh 60kwh 100kwh lifepo4 battery For Electric Truck
Brand: CTS 614v 100ah lithium battery
Price: 8000 USD

Quality 600v 400v Rechargeable Lithium Battery 30kwh 40kwh 50kwh 60kwh 100kwh lifepo4 battery For Electric Truck wholesale

Brand Name : CTS 614v 100ah lithium battery

Model Number : 614v 100ah lifepo4 battery

Certification : ce,msds,un38.3,

Place of Origin : Hunan China

Price : 8000usd-9000usd/unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000

Delivery Time : 60days

Packaging Details : Wooden box or carton

MOQ : 2

Warranty : 2 years

Protection : Built-in Smart BMS

Payment : Paypal.TT.Western Union

Cycle life : 3000 cycel times

Anode Material : LFP

Weight : 290kg

Voltage : 614v

Size : 1780* 720*345mm or can be adjustable

Contact Now

600v 400v electric car rechargeable Li ion battery 30kwh 40kwh 50kwh 60kwh 100kwh ev battery pack for electric truck

600v 400v Rechargeable Lithium Battery 30kwh 40kwh 50kwh 60kwh 100kwh lifepo4 battery For Electric Truck

Details

One Step Battery Solution

Parameters of 614v 100Ah Lifepo4 battery pack
No.	Items	Technical requirement	Note
1	Battery Type	Lifepo4
2	Capacity(Ah)	100	@25°C
3	Volatge	614.4v
4	Power(KWh)	61.44kwh
5	Weight(kg)	558.55
6	Working Voltage range(DC V)	480-700.8
7	Continuous discharge current(A)	80	@EOL , @25'C
8	Peak discharge current(A)	200	For 30 seconds
9	Dimension (L/W/H, mm)	1780* 720*345

Core technologies

>>> Lightweight and scalability <<<CTS systematically optimizes the cell design and electrical component selection. We select the lightest steel/aluminum alloy and
  high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system combined with CAE
  structural simulation analysis to ensure structural strength and improve energy density.
CTS uses standardized cells and BMS to build a 12V 24V 48V 72V battery modules. It can need different customer’s requirements by its excellent scalability to shorten the pack design cycle.

>>> BMS and Active Balance <<<

CTS has an experienced BMS development team. Our BMS uses passive balance by default. Active balance can be selected which can modify BMS parameters on site according to the actual application of customers, such as  CAN / RS485 communication protocol,
  threshold parameters such as over / under voltage protection, high current protection, over / under temperature protection.

>>> Thermal Management and Simulation Design <<<

CTS has the capabilities of CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided Engineering), and can do thermal management simulation design and structural mechanics simulation design for the pack system. Air cooling system, liquid heat and liquid cooling system, PI film heating, silica gel film heating are used in the thermal management design.

>>> Test and Verification <<<

CTS has its cooperated battery test laboratory. We will verify the battery DV / PV (design verification / production
  verification) stage in the laboratory to verify whether the design / production of the battery pack meets the design requirements. It includes temperature test, mechanical test, external environment simulation test, electrical safety test, battery performance test, abuse test and so on.

Product Safety and Related products

NMC 72V 200Ah Lithium battery
Battery Type	NMC
Capacity	200Ah @25°C
Voltage	72v
Weight	130.5kg
Working voltage	60v- 84V
Battery power. 14. 4 kWh Client Country: Canada, in operation since 2015

Lifepo4 96V 400Ah Lithium battery
Battery Type	Lifepo4
Capacity	400Ah @25°C
Voltage	96v
Weight	337kg
Working voltage	75-109.5v
Battery power: 38.4 kWh Client Country: New Zealand, In operation since 2020

NMC 144V 100Ah lithium battery
Battery Type	NMC
Capacity	100Ah @25°C
Voltage	144V
Weight	1305kg
Working voltage	120v - 168v
Battery power. 14. 4 kWh Client Country: Thalaind, In operation since 2020

Application field

System Stability, high and low temperature resistance, long life, high cost performance,high safty, ultra-wide application range.

Company Profile

10+ years to sharpen a sword.
  We do only one thing, professional customization.

  20 + R&D team
  150 front-line production employees
  10 production lines
  20,000 square meter plant
  Capacity up to 500mwh

Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.

  We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
  We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.

  We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.

Product testing and shipping

Customized plywood case and foam packaging, safe for different shipment2. 100% full testing before shipment to ensure quality
MSDS and UN38.3 certifications to ensure customs declaration and clearance during transportation
Customs on-site inspection to ensure the safety of the battery
